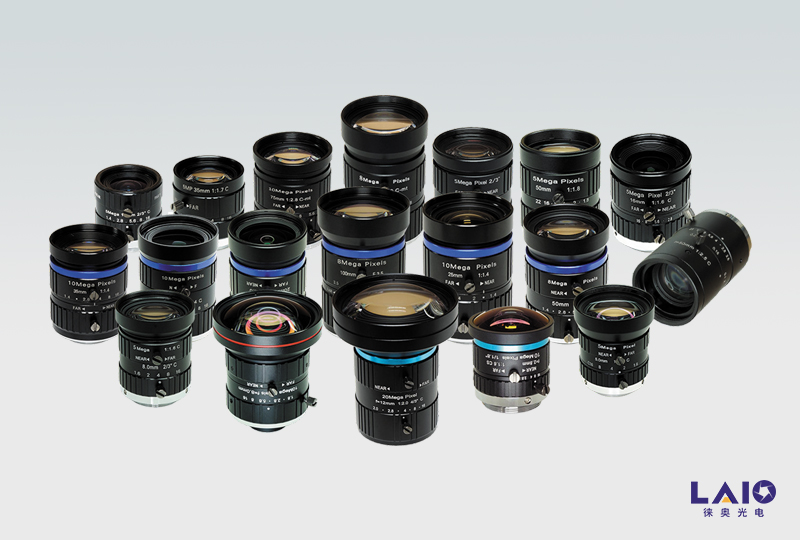

F系列FA工业镜头
常用相机靶面1/1.8"，2/3"，1"，4/3"，多种焦距，f2.8mm到f100mm，全系列FA工业镜头。
产品特点：
品种齐全，高性价比
结构紧凑、坚固耐用
高分辨率
非常小的畸变
F系列FA工业镜头快速选型
| 型号 | 焦距(mm) | 光圈FNO | 像面尺寸(mm) | 工作距离(mm) | 分辨率 | 适配接口(mm) | 规格书 |
|---|---|---|---|---|---|---|---|
| F02816 | 2.8 | 1.6~16 | 1/1.8" | 50 ~ Inf. | 10M | CS-Mount | 点此下载 |
| F0418 | 4 | 1.8~16 | 1/1.8" | 100 ~ Inf. | 10M | C-Mount | 点此下载 |
| F0516 | 5 | 1.6~16 | 1/1.7" | 100 ~ Inf. | 5M | C-Mount | 点此下载 |
| F0816 | 8 | 1.6~16 | 2/3" | 120 ~ Inf. | 5M | C-Mount | 点此下载 |
| F1214 | 12 | 1.4~16 | 2/3" | 150 ~ Inf. | 5M | C-Mount | 点此下载 |
| F1216 | 12 | 1.6~16 | 2/3" | 150 ~ Inf. | 5M | C-Mount | 点此下载 |
| F1616 | 16 | 1.6~16 | 2/3" | 300 ~ Inf. | 5M | C-Mount | 点此下载 |
| F2514 | 25 | 1.4~16 | 2/3" | 200 ~ Inf. | 5M | C-Mount | 点此下载 |
| F3517 | 35 | 1.7~16 | 2/3" | 350 ~ Inf. | 5M | C-Mount | 点此下载 |
| F5018 | 50 | 1.8~22 | 2/3" | 500 ~ Inf. | 5M | C-Mount | 点此下载 |
| F0818 | 8 | 1.8~16 | 1" | 150 ~ Inf. | 10M | C-Mount | 点此下载 |
| F1614 | 16 | 1.4~16 | 1" | 200 ~ Inf. | 10M | C-Mount | 点此下载 |
| F2020 | 20 | 2.0~16 | 1" | 150 ~ Inf. | 10M | C-Mount | 点此下载 |
| F2514 | 25 | 1.4~16 | 1" | 250 ~ Inf. | 10M | C-Mount | 点此下载 |
| F3514 | 35 | 1.4~16 | 1" | 300 ~ Inf. | 10M | C-Mount | 点此下载 |
| F5014 | 50 | 1.4~16 | 1" | 300 ~ Inf. | 8M | C-Mount | 点此下载 |
| F5025 | 50 | 2.5~22 | 1" | 450 ~ Inf. | 16M | C-Mount | 点此下载 |
| F7528-8 | 75 | 2.8~16 | 1" | 1200 ~ Inf. | 8M | C-Mount | 点此下载 |
| F7528-10 | 75 | 2.8~16 | 1" | 1200 ~ Inf. | 10M | C-Mount | 点此下载 |
| F10035 | 100 | 3.5~32 | 1" | 2000 ~ Inf. | 8M | C-Mount | 点此下载 |
| F1220 | 12 | 2.0~16 | 4/3" | 200 ~ Inf. | 20M | C-Mount | 点此下载 |
FA工业镜头，根据不同应用需求如焦距、使用波长、倍率范围等，可按客户需求定制。
